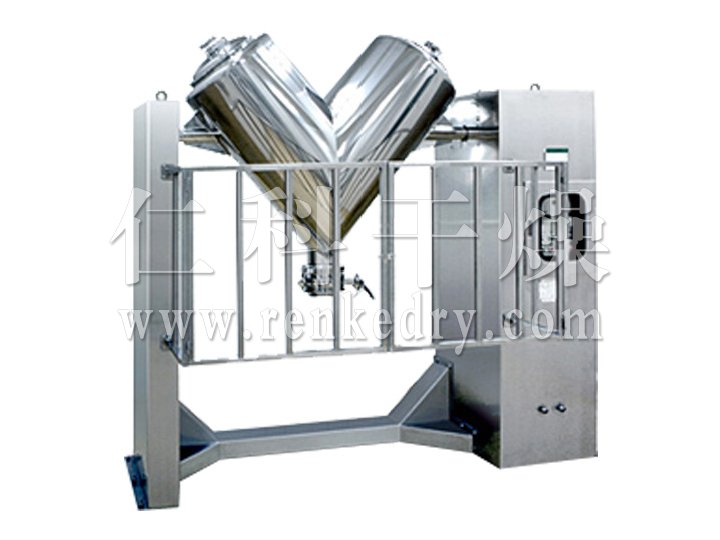

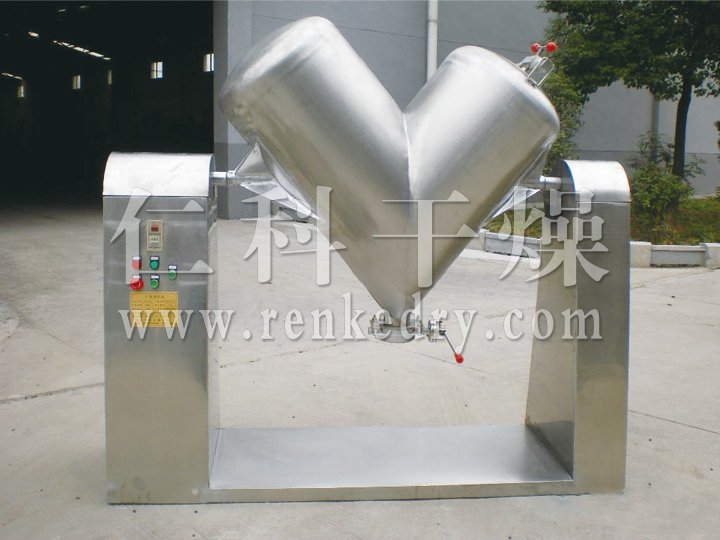

ZKH (V) Mixer
Characteristics
The structure of mixing barrel is unique and the mixing efficiency is high and no dead corners. The barrel is made of stainless steel with polished treatment so the appearance is beautiful. The mixing uniformity is good and it has a wide application.
FEATURES
The structure of mixing barrel is unique and the mixing efficiency is high and no dead corners. The barrel is made of stainless steel with polished treatment so the appearance is beautiful. The mixing uniformity is good and it has a wide application.
APPLICATION
The mixer is used for mixing the dry granule materials in the medical, chemical, food, metallurgical, and other industries.
MATERIAL TO BE DRYED
The mixer is used for mixing the dry material grains in the medical,chemical,food,metallurgical and other industries.
Technical Parameter
| Spec \ Item |
Total Volume (L) |
Material Capcity (L) |
Working Capacity (kg) |
Rotating Speed (rpm) |
Power (kw) |
Weight (kg) |
| 0.05 | 50 | 25 | 15 | 25 | 0.55 | 500 |
| 0.15 | 150 | 75 | 45 | 20 | 0.75 | 650 |
| 0.3 | 300 | 150 | 90 | 20 | 1.1 | 820 |
| 0.5 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
| 1 | 1000 | 500 | 300 | 15 | 3 | 1800 |
| 1.5 | 1500 | 750 | 450 | 12 | 4 | 2100 |
| 2 | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
| 3 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
| 4 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
| 5 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| 6 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
| 8 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
| 10 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
