TJG fixed lifting feeder
Overview
TJG series of fixed lifting feeder consists of two parts, namely, hoist and base. The hoisting machine is composed of a frame, a hydraulic lifting system and a material door turning mechanism. Work, first hoist the material door and barrel buckle, start lifting lever, the material and the bucket with the rise, start the flip lever, the bucket can be rotated 180 degrees, was the end of barrels up attitude and move To the desired location, the use of material on the door butterfly valve, can be easily added to the required materials in the process equipment.
Technical specifications
| Model specifications \ parameters | H | A | D | H1 |
| TJG-50 | 2050 | 650 | Φ485 | 2900 |
| TJG-100 | 2050 | 750 | Φ590 | 2900 |
技术规格

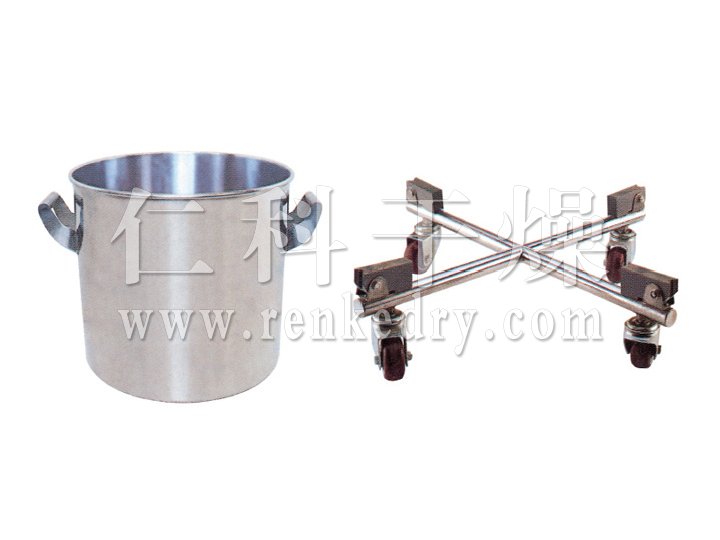

| name | quantity（kg） | Specifications (barrel diameter × height) | Wall thickness（mm） |
| Barrel | 50 | Φ485×460 | 0.8 |
| 100 | Φ590×550 | 0.8 | |
| Barrels of special vehicles | 50-100 | Φ500×600 |
