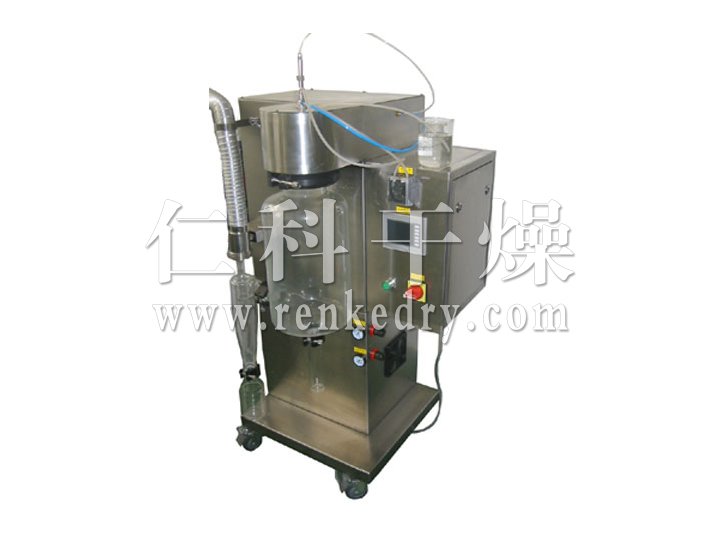

QPG Airflow Spray Dryer
Clean air heating into the drying tower, the hot air in the tower with two fluid (or three fluid) nozzle will be a variety of liquid atomized into tiny droplets, and hot air for rapid heat exchange, evaporation of liquid material in the water (or Solvent) and discharged with hot air to obtain a powdery product.
Features
Especially for large viscosity, paste, paste-like material effect, and other equipment can not be replaced.
Experimental multi-species, low-temperature drying applications.
The nozzle has the advantages of simple structure, convenient maintenance and low running cost.

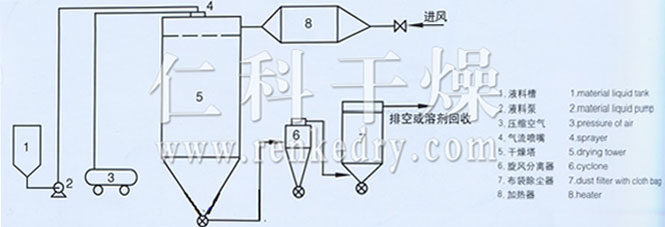

flow chart:
Technical Parameters:
|
Parameters \ model |
5 |
25 |
50 |
100 |
150 |
200 |
|
|
Evaporation kg / h |
△t=150℃-90℃ |
1.5 |
7.5 |
15 |
30 |
45 |
60 |
|
△t=200℃-100℃ |
2.5 |
12.5 |
25 |
50 |
75 |
100 |
|
|
△t=250℃-100℃ |
3.75 |
18.75 |
37.5 |
75 |
112.5 |
150 |
|
|
△t=300℃-100℃ |
5 |
25 |
50 |
100 |
150 |
200 |
|
|
△t=350℃-110℃ |
6 |
30 |
60 |
120 |
200 |
240 |
|
|
Compressed air m3 / min |
0.9 |
0.9 |
1.1 |
1.5 |
2.7 |
3.4 |
|
|
Compressed air pressure Mpa |
0.4 |
0.6 |
0.7 |
||||
|
Heat source mode |
Electricity, electricity + steam, coal (oil) hot stove |
||||||
|
Heat supply 104kcal / h |
1 |
5 |
10 |
20 |
30 |
40 |
|
|
Fan power kw |
0.75 |
4 |
7.5 |
11 |
15 |
18.5 |
|
