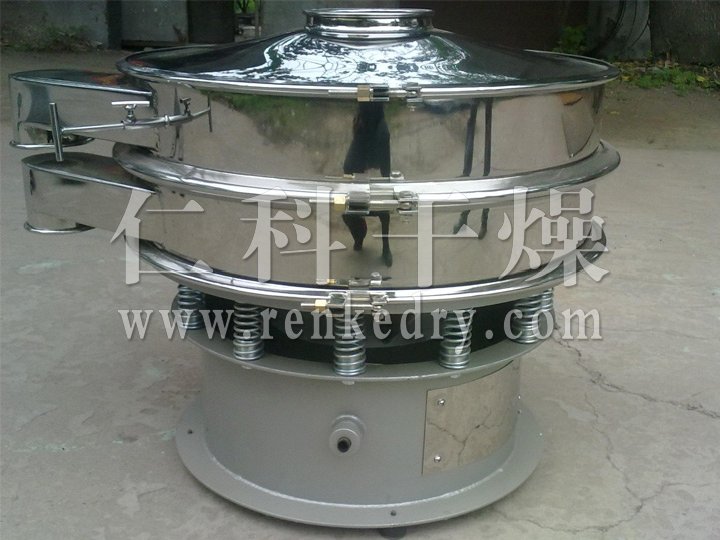

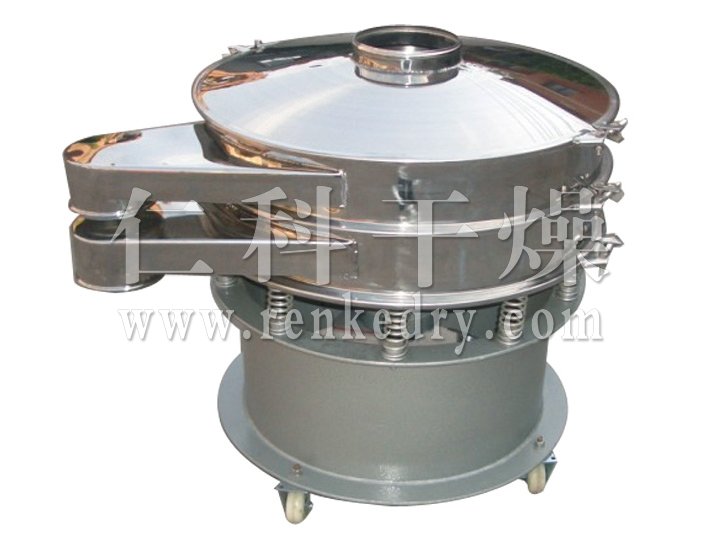

ZS series of circular oscillating screen

Overview
The machine consists of hopper, oscillation chamber, coupling, motor. Oscillating room with eccentric wheel, rubber software, spindle, bearings and other components. Adjustable eccentric weight driven by the motor to the spindle center line, in the unbalanced state of centrifugal force, so that the material strength changes in the formation of orbital vortex in the screen. The amplitude of the hammer adjuster can be adjusted according to different materials and screens. The whole structure is compact, small size, no dust, low noise, high quality, low energy consumption, easy maintenance of mobile.

Technical specifications

model	ZS-350	ZS-515	ZS-650	ZS-800	ZS-1000	ZS-1500
Production capacity(kg/h)	40-500	60-600	80-800	150-1200	300-2000	350-2800
The number of mesh	12-1200	12-200	12-200	12-200	5-325	5-325
Motor Power(kw)	0.55	0.55	0.55	0.75	1.5	2.2
Spindle speed(rpm)	1380	1370	1370	1500	1500	1500
Dimensions(mm)	540×540×1060	710×710×1290	880×880×1350	1000×1000×1000	1100×1100×1200	1600×1600×1200
net weight(kg)	100	180	250	300	350	400
